Structural Wood Corporation: Insulated Rim Board

Insulated Rim Board is the Minnesota Solution from Structural Wood Corporation. Cost saving is all about time saving. With SWC's INSUL-RIM.PLUS™, the need to install multiple products is over. You can focus on getting the job done. INSUL-RIM.PLUS™ in 2-5/8" thickness provides an R-8 value and 3-1/8" INSUL-RIM.PLUS™ provides an R-11 insulation value. Both are compliant with Minnesota Energy Code 2000. For even more savings, Insul-Rim Plus also comes in 16' lengths for labor cost savings and to work with all joist spacings. And it can be ordered up to 24" deep so it's compatible with any engineered floor system.

Below, you will find complete installation drawings in pdf form. Building material retailers may visit our Inventory page to see what's available. All others should contact their building material retailer and ask for Structural Wood Corporation's INSUL-RIM.PLUS™.

The following details pertain to using SWC's INSUL-RIM.PLUS™ with I-Joists.

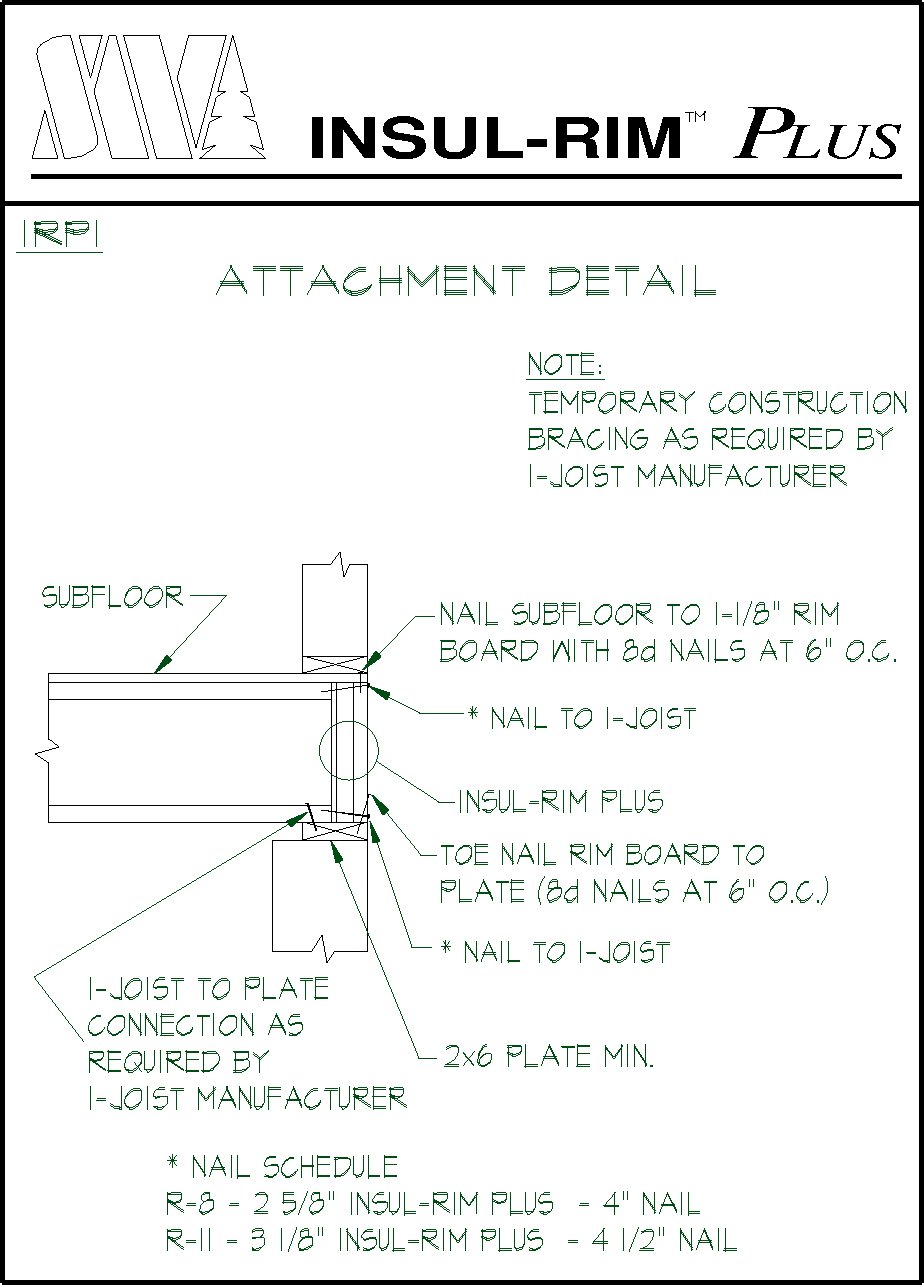

- Standard Wood-Bearing Attachment
- Closure Detail for Non-load Bearing Cantilever

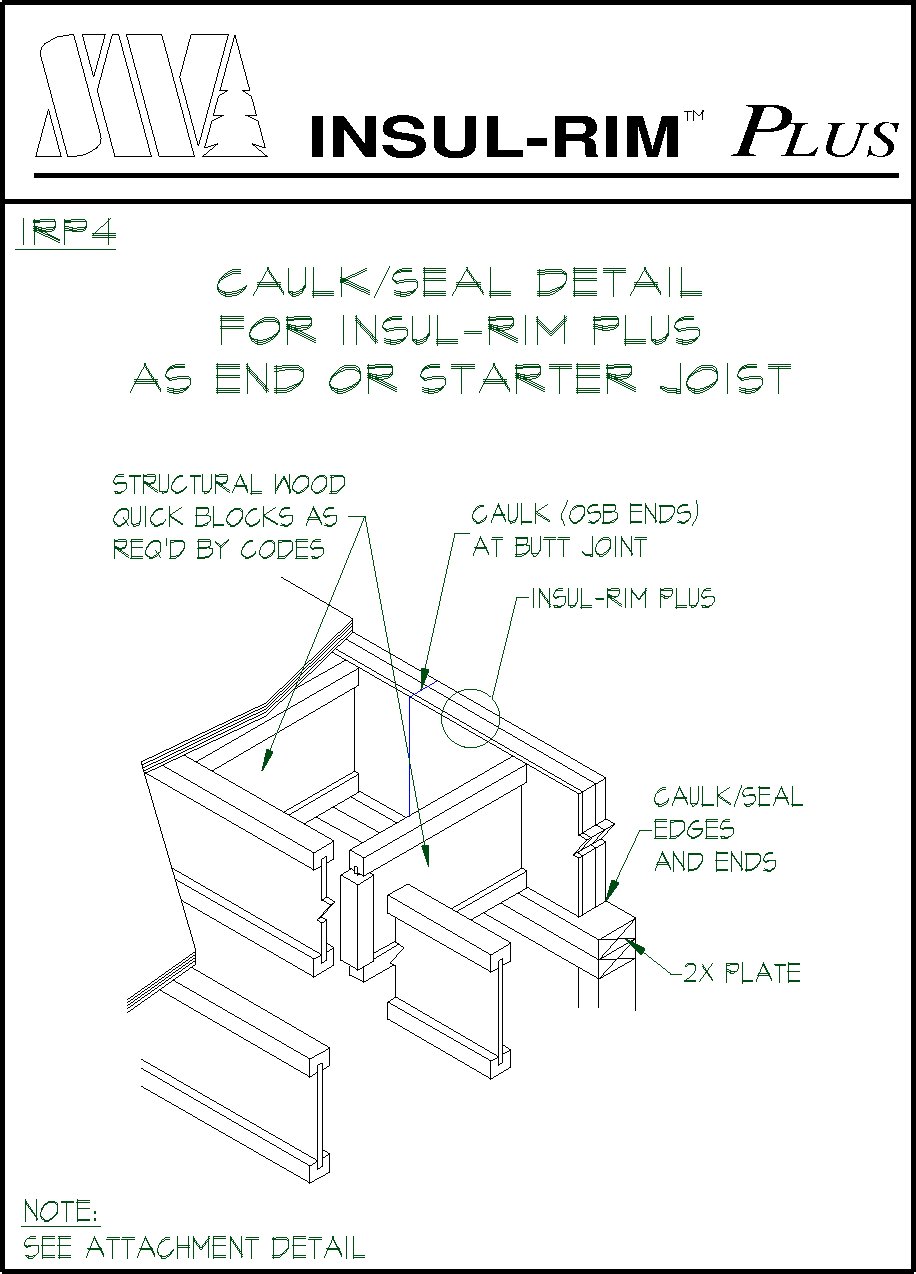

- Caulk/Seal Detail for INSUL-RIM.PLUS™ as End or Starter Joist
- Detail for Concentrated Loads

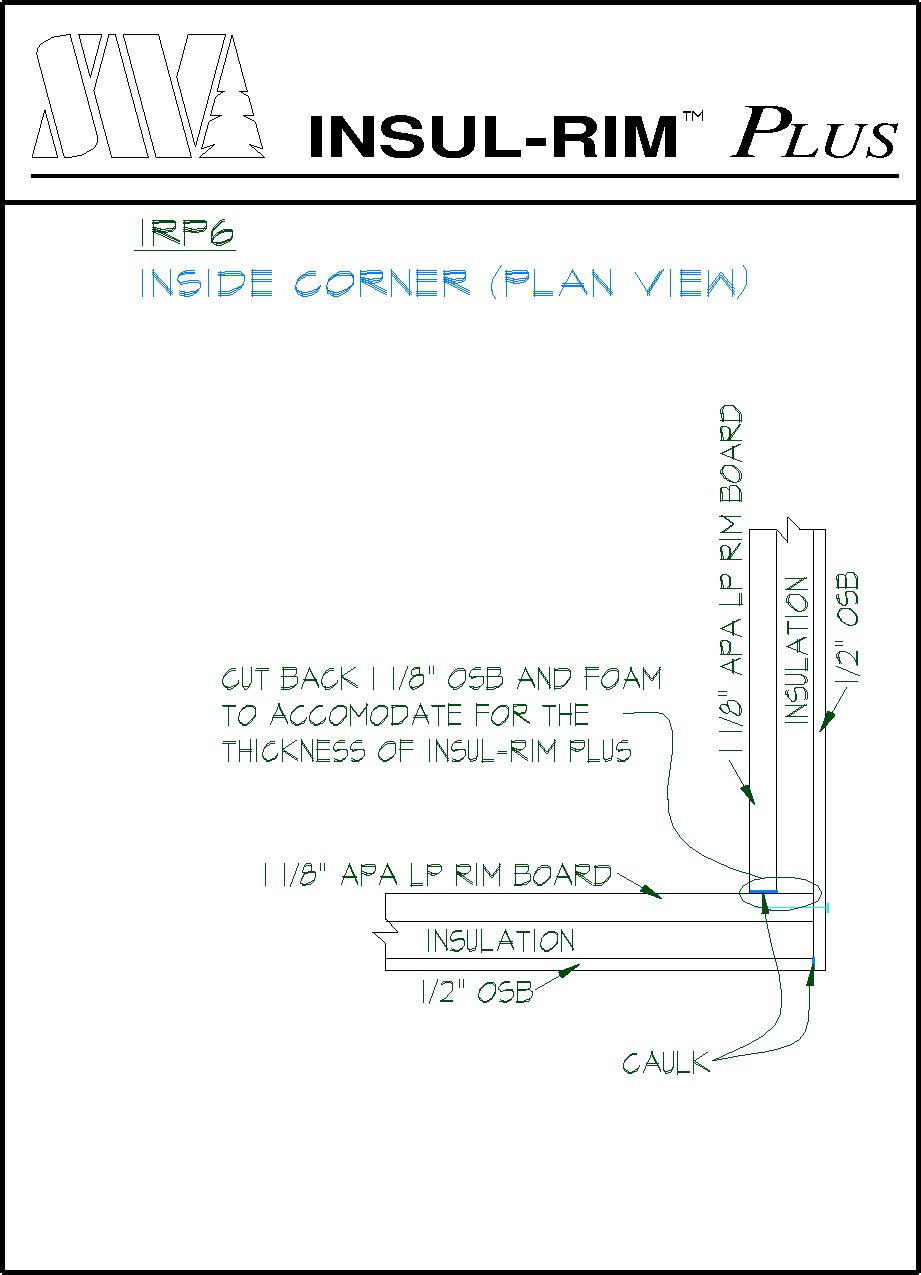

- Inside Corner (Plan View)

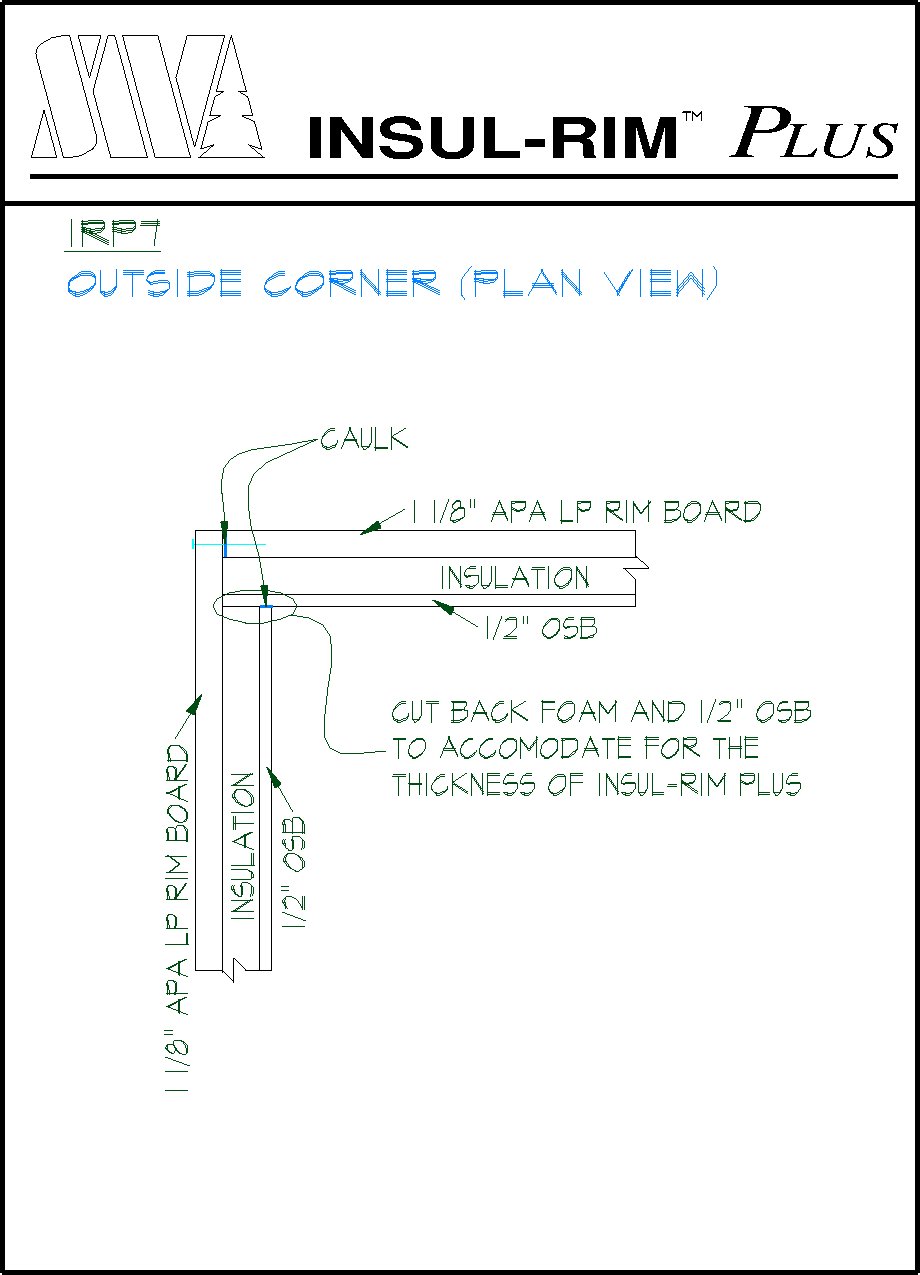

- Outside Corner (Plan View)
- General Notes

The following details pertain to using SWC's INSUL-RIM.PLUS™ with Open Web Trusses.

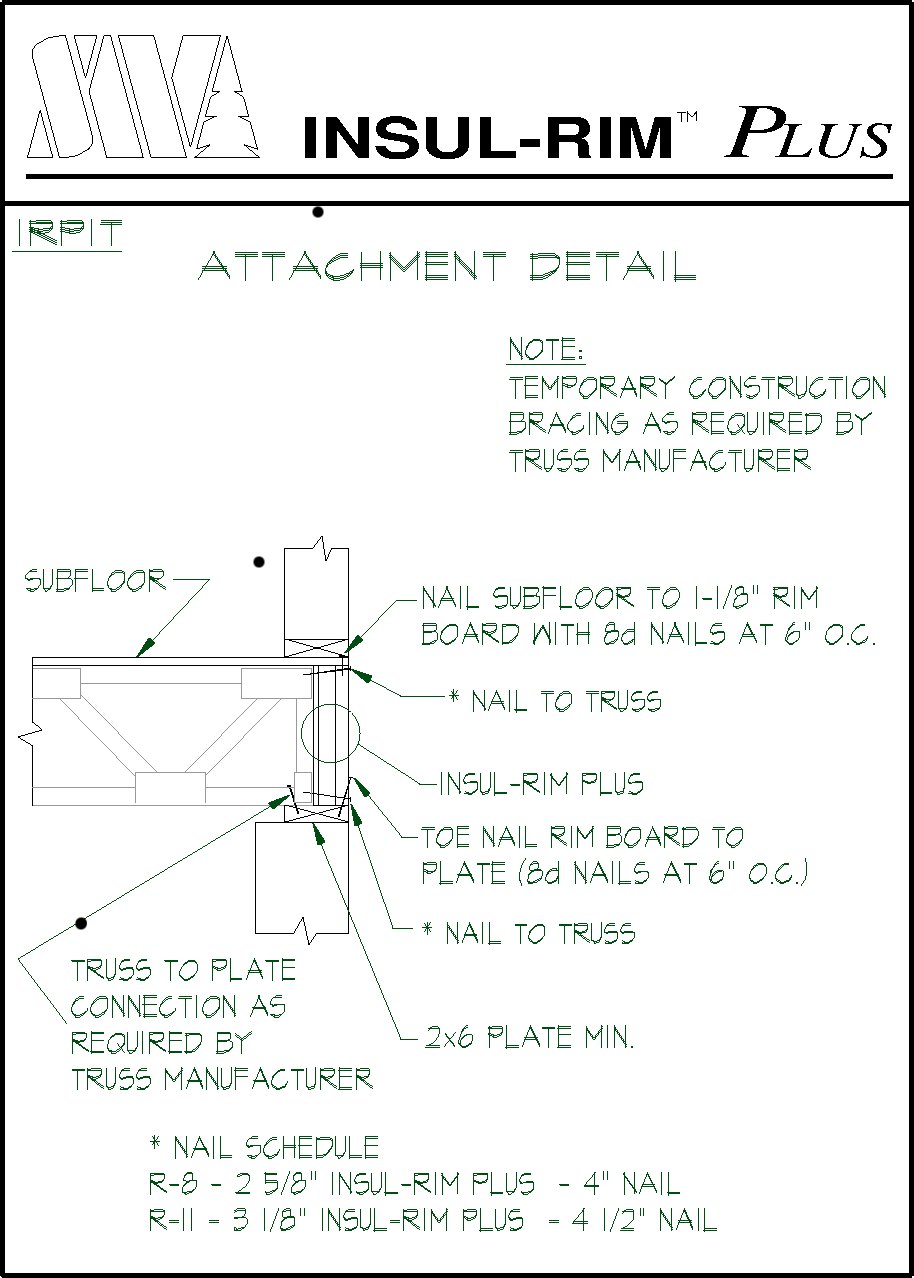

- Standard Wood-Bearing Attachment

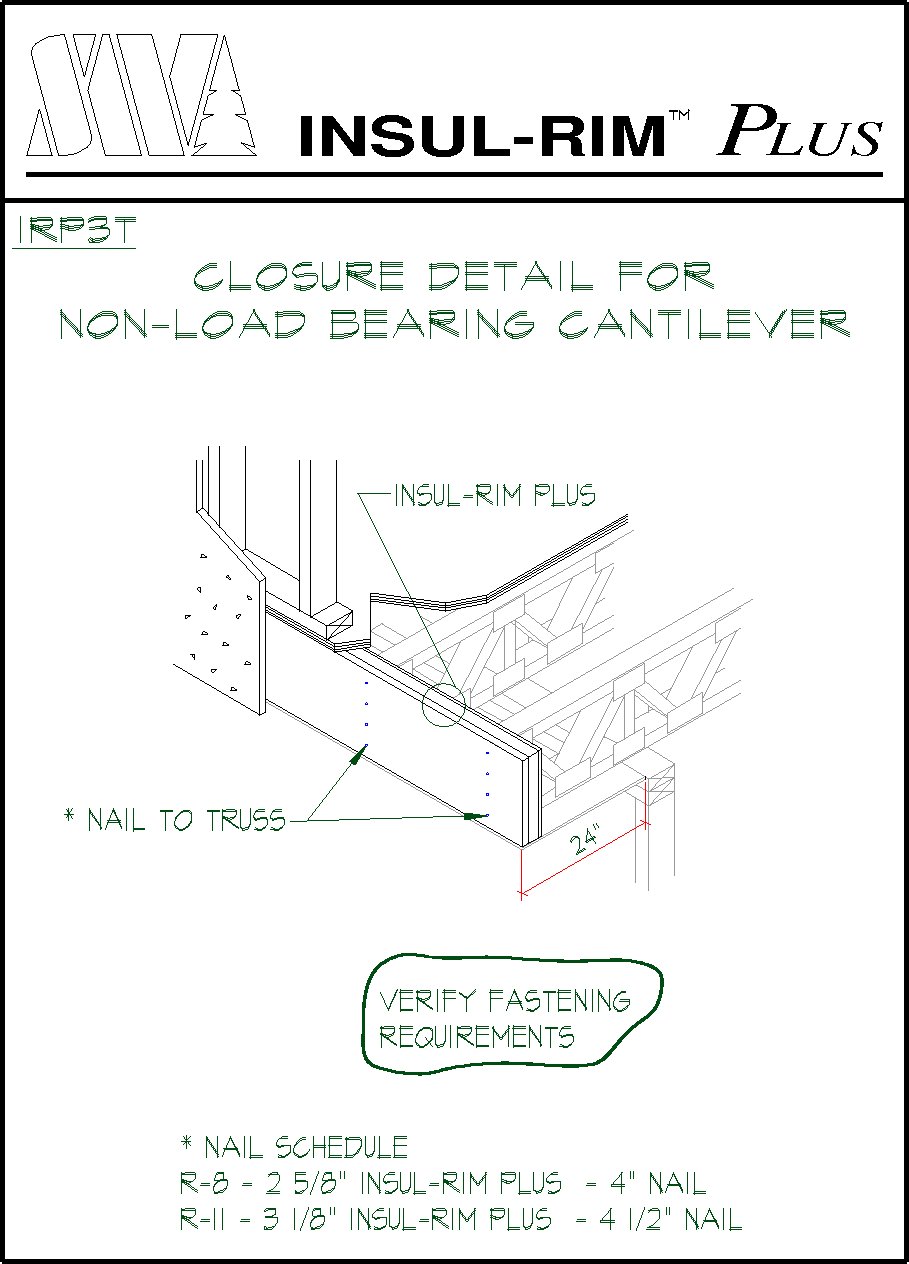

- Closure Detail for Non-load Bearing Cantilever

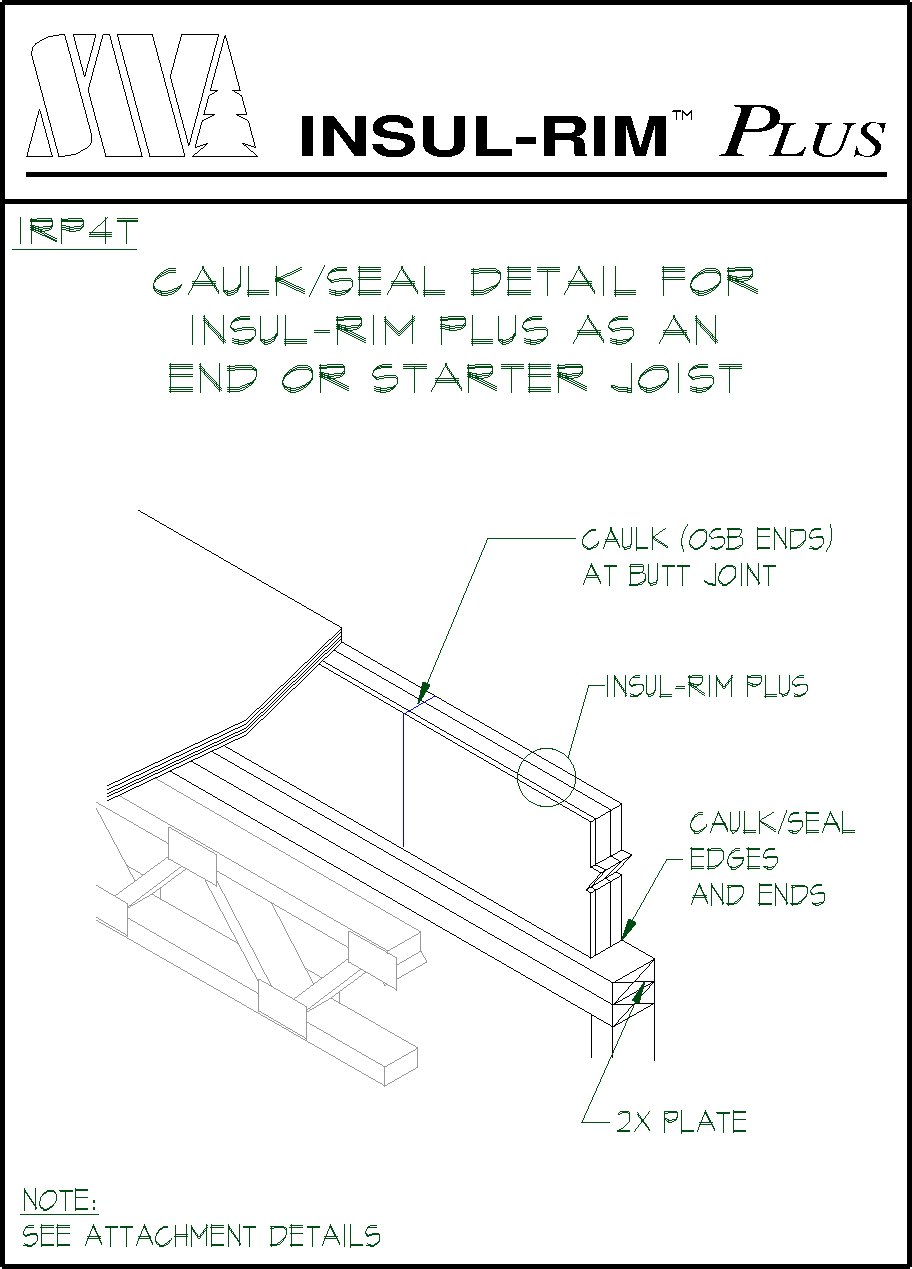

- Caulk/Seal Detail for INSUL-RIM.PLUS™ as End or Starter Joist

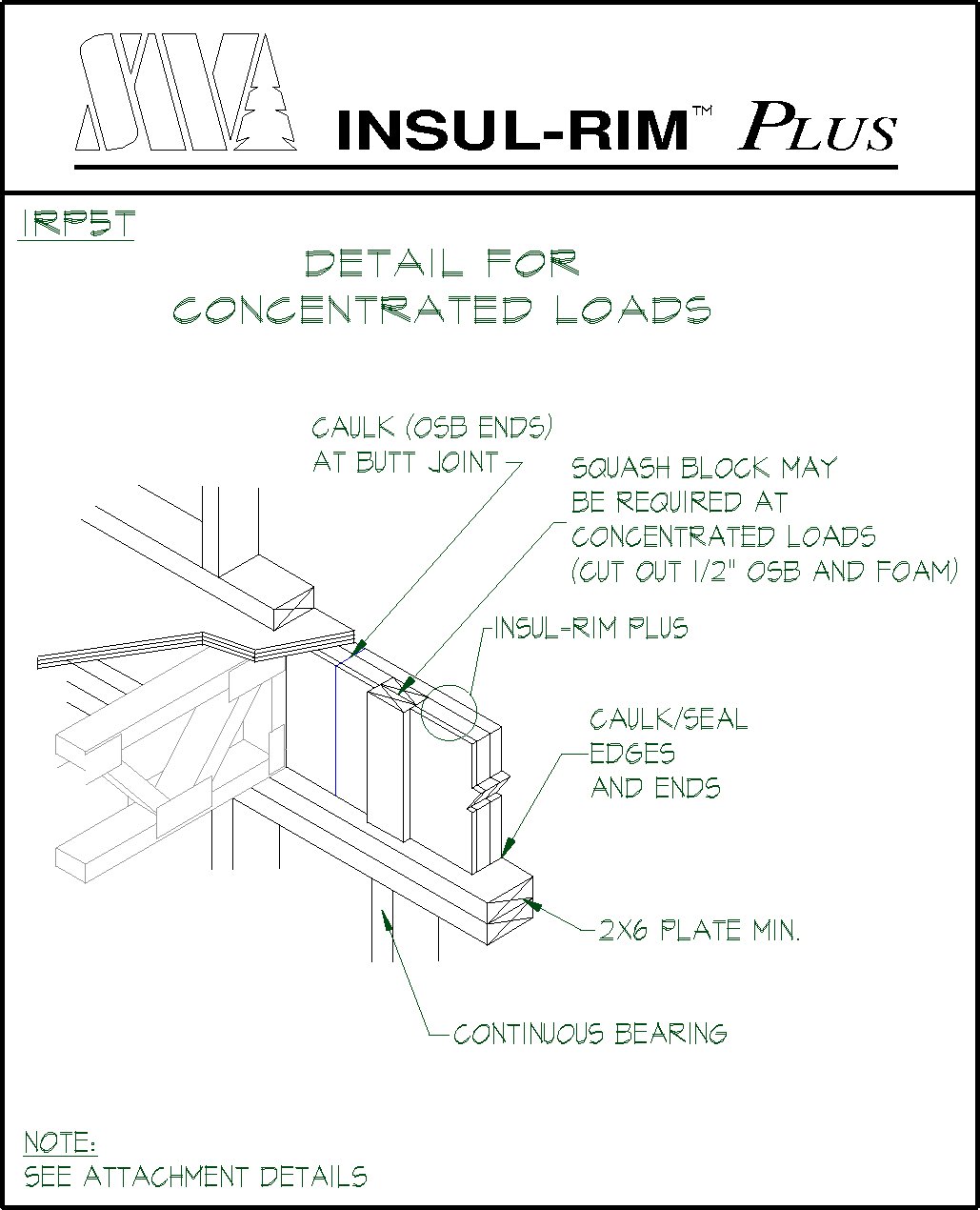

- Detail for Concentrated Loads

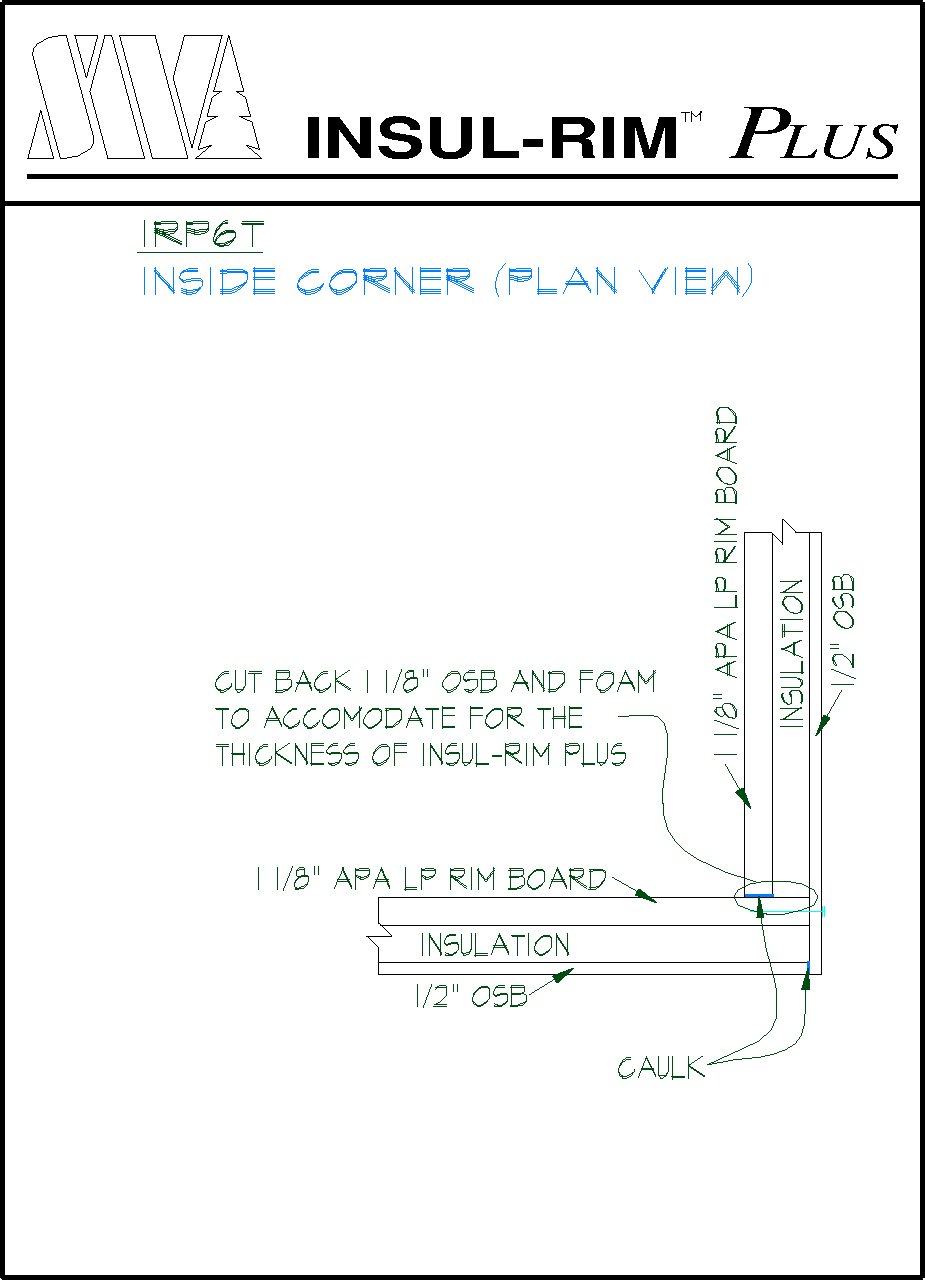

- Inside Corner (Plan View)

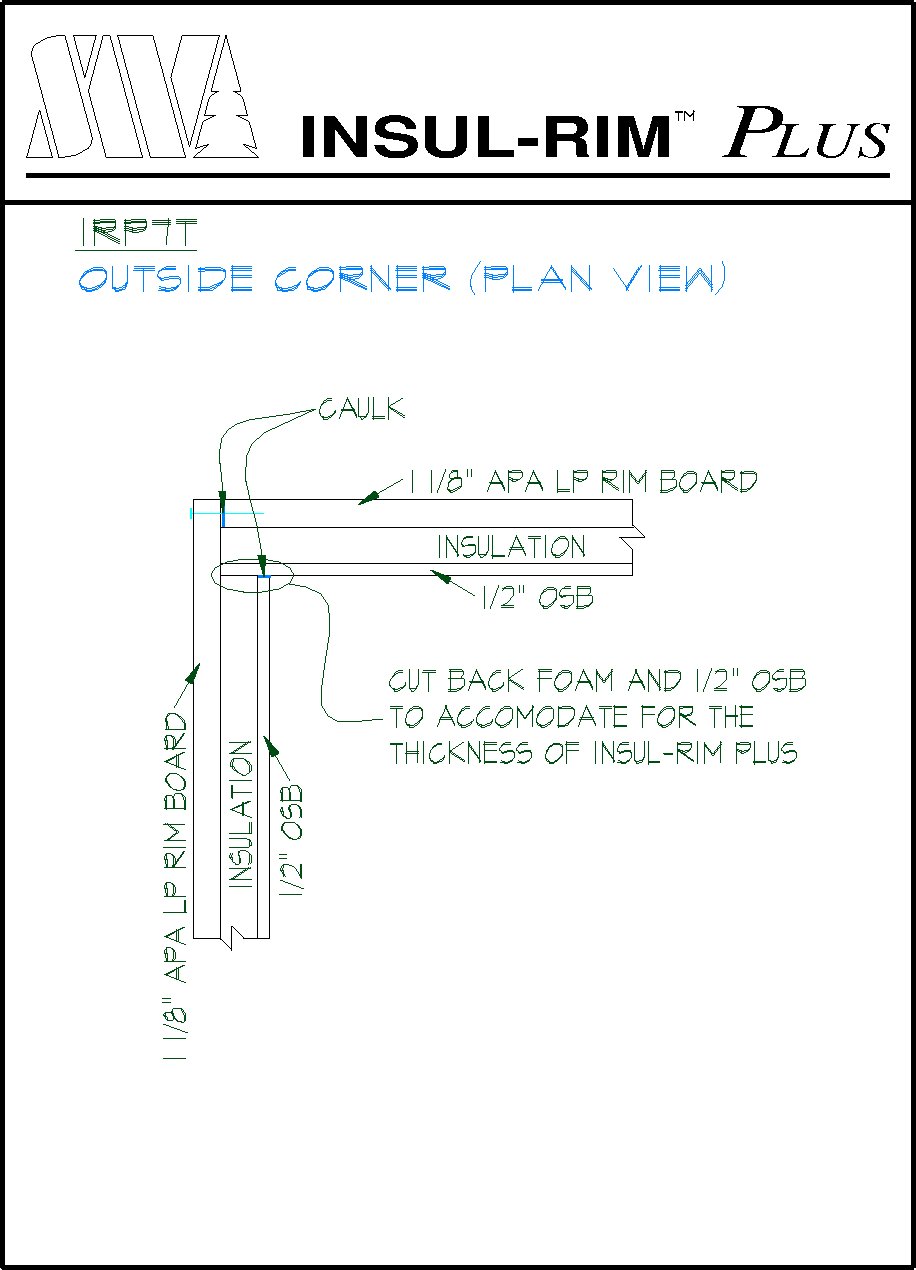

- Outside Corner (Plan View)
- General Notes
